Water Solenoid Valves/Solenoid Valves(Brass,Water,Oil,Steam) 2Q Series Solenoid Valves manufacturer from China Puremix Electro Mechanical Co., ltd.

Water Solenoid Valves/Solenoid Valves(Brass,Water,Oil,Steam)

Price:	0.1~1.0 USD
Payment Terms:	T/T,WU
Place of Origin:	, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 2Q Series Solenoid Valves

Production Capacity: 1000000000000000pcs

Delivery Date: 1-5

Solenoid valves: Brass/Water

Means of Transport: Ocean

Packing: small bag+ small box+big bo...

Brand Name: PUREMIX

Our products include solenoid valve, pneumatic valve, pneumatic cylinder, pneumatic fittings air combination and other units related with pneumatic.

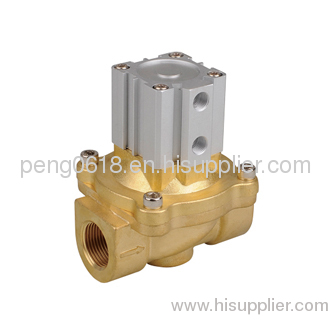

2Q Series Air Control Two-Way Valve
Model 2Q200-20 2Q200-25 2Q350-40 2Q500-50
Working Medium Air, Water, Oil, Gas
Motion Pattern Direct Drive Type
Aperture of Flow Rate 22 22 35 50
CV Value 12 12 24 48
Joint Pipe Bore G3/4" G1" G11/2" G2"
Operation Fluid Viscosity 50 CST (Below)

Working Pressure Rang 0~0.7MPa
Max. Pressure Resistance 1.05MPa
Control Pressure Rang 0.3~0.6MPa
Operating Temperature Rang -5~+100
Material of Body Brass
Material of Oil Seal PTFE
Control Joint Pipe Bore 2-G1/8" 2-G1/8" 2-G1/4" 2-G1/4"
2Q Series Air Control Two-Way Valve

Model	2Q200-20	2Q200-25	2Q350-40	2Q500-50
Working Medium	Air, Water, Oil, Gas
Motion Pattern	Direct Drive Type
Aperture of Flow Rate	22	22	35	50
CV Value	12	12	24	48
Joint Pipe Bore	G3/4"	G1"	G1 1 /2"	G2"
Operation Fluid Viscosity	50 CST (Below)
Working Pressure Rang	0~0.7MPa
Max. Pressure Resistance	1.05MPa
Control Pressure Rang	0.3~0.6MPa
Operating Temperature Rang	-5~+100
Material of Body	Brass
Material of Oil Seal	PTFE
Control Joint Pipe Bore	2-G1/8"	2-G1/8"	2-G1/4"	2-G1/4"
